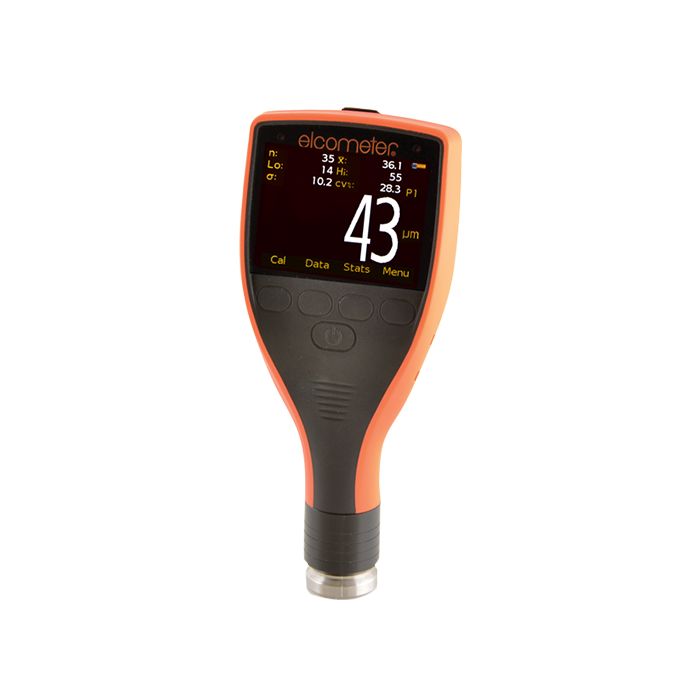

The Elcometer 224 Digital Surface Profile Gauge provides the very latest in surface profile measuring technology for measuring surface profile on either flat or curved surfaces.
Accurate Surface Profile Measurements
- Can be used in accordance with National and International Standards
- Temperature stable measurements
- Statistics are calculated and displayed in real time during inspection
A Powerful Surface Profile Gauge
- User replaceable tough tungsten carbide tip, can be used for up to 20,000 surface profile readings
- USB and Bluetooth® data output to iPhone¹ or Android™ devices
- Measures surface profiles up to 500μm (20mils)
- Review batch data or last 20 readings in a graph format
Efficient Inspections
- Fast reading rate of 50+ per minute

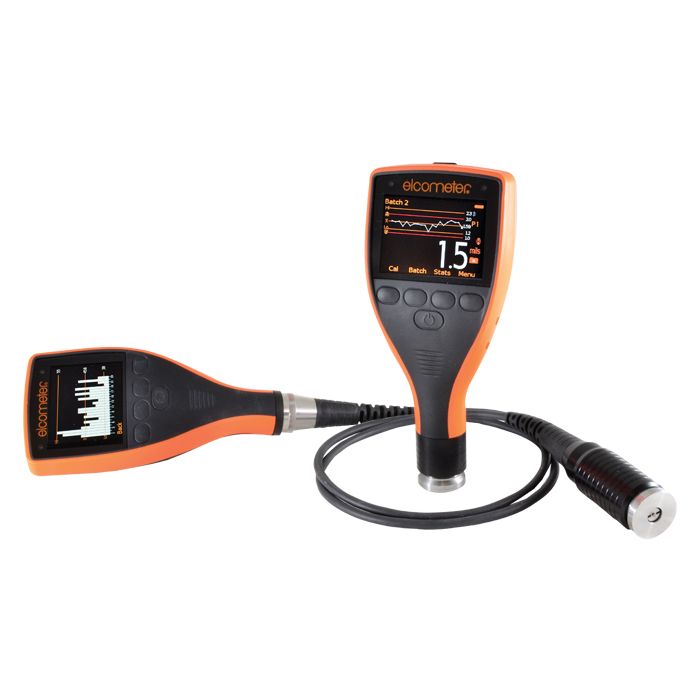

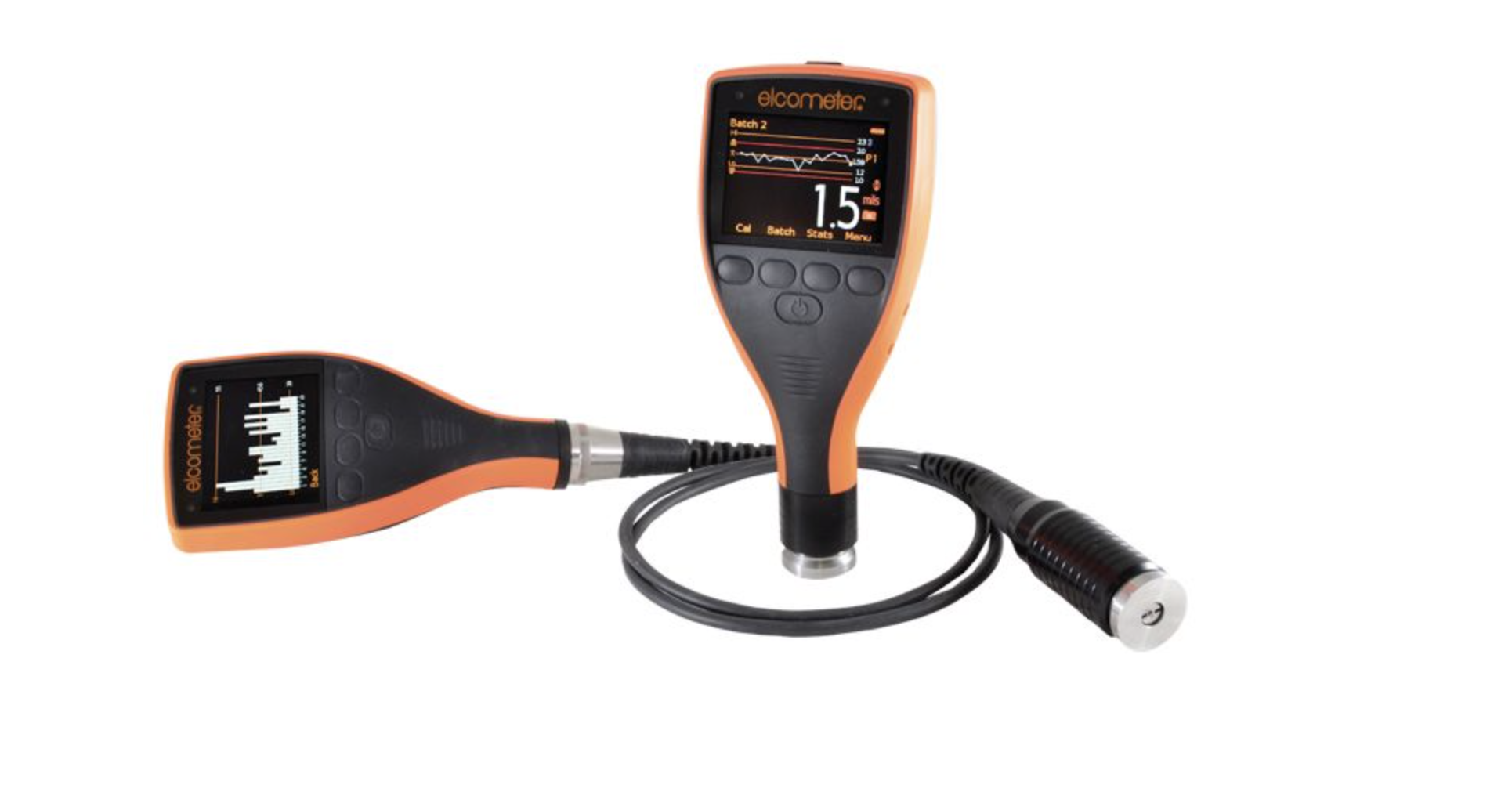

- Integral and separate probe versions to suit your application
- Alpha numeric batch identification
- Compatible with ElcoMaster® software and ElcoMaster® Mobile App
Table of Contents▼
Standards
Elcometer 224 Digital Surface Profile Gauge Model T
ASTM D 4417-B, SANS 5772, SSPC PA 17, US Navy NSI 009-32, US Navy PPI 63101-000
Technical Specification
| Display Information | 2.4” (6cm) QVGA colour TFT display, 320 x 240 pixels | ||
| Battery Type | 2 x AA batteries, rechargeable batteries can also be used | ||
| Battery Life | Approximately 24 hours of continuous use at 1 reading per second2 | ||
| Minimum Headroom | Integral: 185mm (7.3”) Separate: See probe technical specification |
||
| Dimensions | Integral: 168 x 73 x 37mm (5.61 x 2.87 x 1.46”) Separate: 141 x 73 x 37mm (5.55 x 2.87 x 1.46”) |
||
| Weight | Integral Gauge (including batteries): 218g (7.69oz) Separate Gauge (including batteries): 161g (5.68oz) |
||
| Measurement Range | 0-500μm (0-20mils) | ||
| Probe Tip | Tungsten carbide tip 60° angle | ||
| Tip Radius | 50μm (2mil) | ||
| Operating Temperature | -10 to 50°C (14 to 122°F) | ||
| Storage Temperature | -10 to 60°C (14 to 140°F) | ||
| Accuracy3 | ±5% or ±5μm (±0.2mil) | ||
| Resolution | 1μm (0.1mil); | ||
| Packing List | Elcometer 224 Digital Surface Profile Gauge, glass zero tile4, 2 x calibration foils4, wrist harness, plastic transit case (T), protective case, screen protector, probe protection cap4, 2 x AA batteries, test certificate, operating instructions, USB cable (T) & ElcoMaster® software (T) | ||
