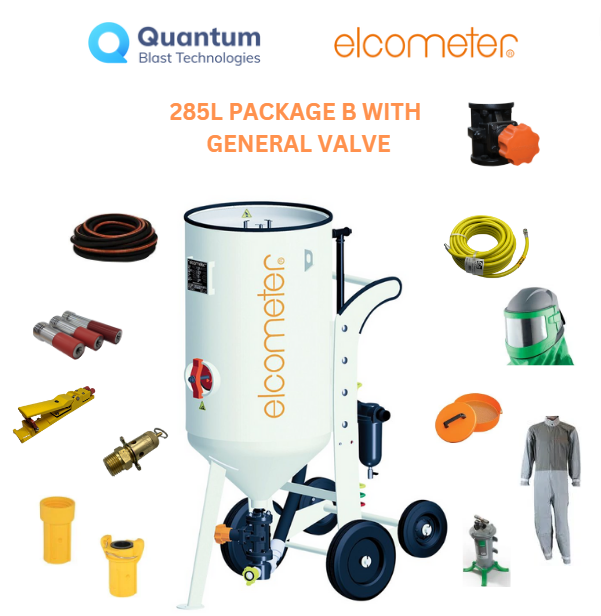

***Package includes Automatic General Valve (AGV), Fitted Blast hose, #7 Nozzle, Coupling, Nozzle Holder, Blastsuit, Helmet Nova 2000, Filters, Lid and Screen***

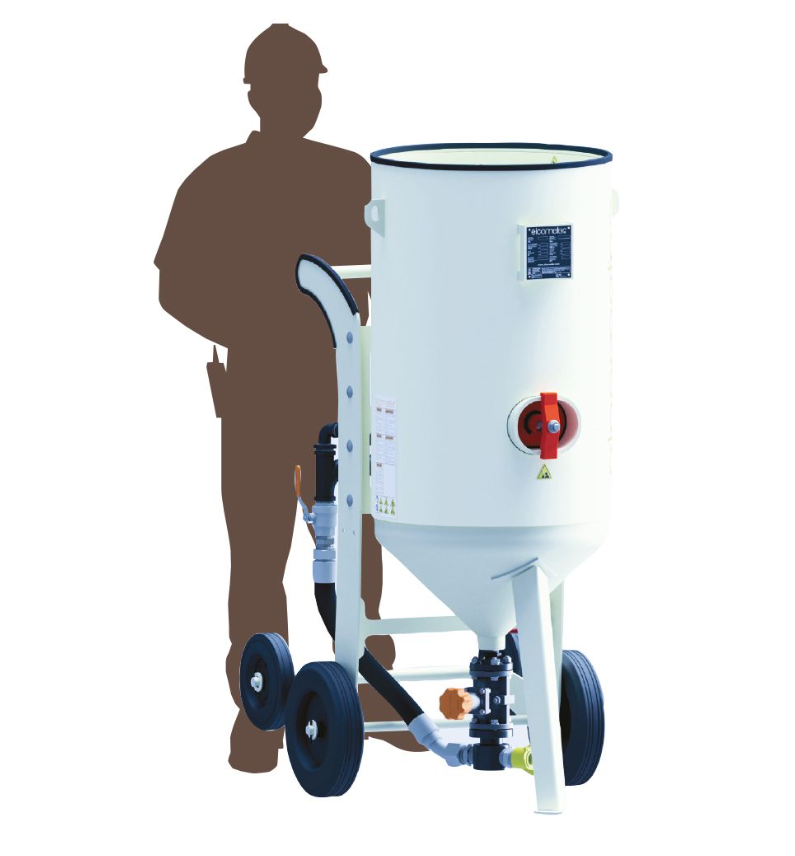

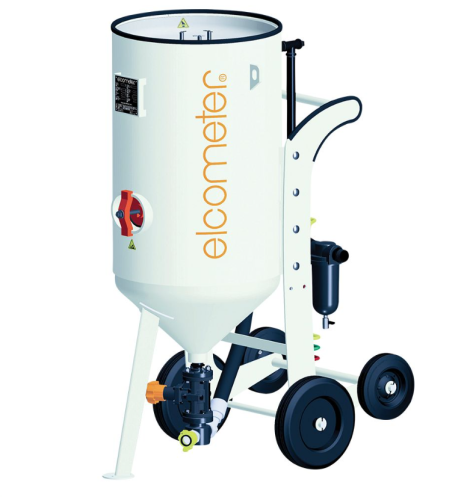

The Elcometer 24285 Abrasive Blast Machine is ideal for continuous high production abrasive blasting, on site or in a blast room.
- Ideal for site work or blast room installation
- One or two operators from a single blast pot
- Ideal for hopper filling
- Twin wheeled portable blast pot that is safe and easy to manoeuvre
- Available with a range of grit valves to suit your application
- Heavy duty 6mm (¼”) construction
- Easy and quick to service
ENHANCE YOUR BLASTING PERFORMANCE
Optimising the volume, speed and pressure of air to the nozzle results in greater abrasive blasting (sandblasting) efficiency. Higher pressure and speed of air at the blast nozzle will also allow use of a larger nozzle size resulting in faster blast area coverage allowing you to cover more in less time. Operating at more efficient blast pressures will also result in less abrasive usage thus saving money and clean up time!
- Minimise Your Pressure Loss
- Maximise Your Cubic Air Flow Per Minute
- Blast For Longer
- Be In Control
- Reduce your Maintenance
SAFE & RELIABLE
Rugged, reliable and easy to use, Elcometer Abrasive Blast Machines & Valves are supplied with a full 12 month warranty and are engineered & tested to be incredibly efficient, durable and safe.
- Built to Last
- Putting You in Control
- Emergency Shut Down
- Peace of Mind
Kit includes:
- 24″ 285 litre (610mm, 10.06cu ft) Abrasive Blast Machine
- Pressure Test Certificate
- RCV4000+ Remote Control Valve with Air Manifold, Exhaust and Silencer
- 20m (65.6ft) Pneumatic Control Hose and Deadman’s Handle (DMHII)
- Choke Valve and Pusher Line
- General Valve with Mixer T and Metal Pot Coupling
- Moisture Separator
Technical Specifaction
| Volume | 285 Litres | 10.06cu ft |
| Garnet Grit | 667kg | 1469lbs |
| Steel Shot | 1254kg | 2767lbs |
| Pot Diameter: | 610mm | 24″ |
| Height: | 1665mm | 66″ |
| Width: | 794mm | 31″ |
| Depth: | 1109mm | 44″ |
| Weight: | 231kg | 509lbs |
| Pipework Diameter: | 38mm | 11⁄2“ |
| Maximum Working Pressure (WP)2: | 12bar | 174psi |
| Operating Temperature Range: | 0 to 60oC | 32 to 140oF |
